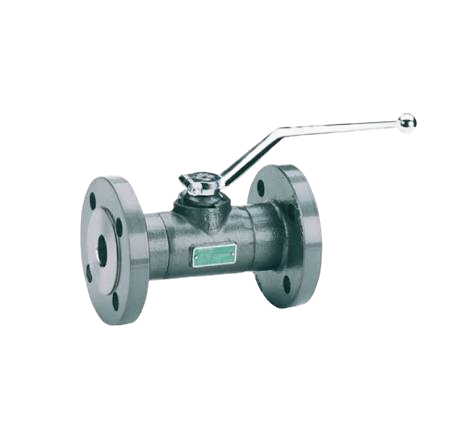

What is a flanged LPG ball valve PN25?
A flanged LPG ball valve PN25 is a high-pressure industrial isolation valve designed with bolted flange connections and rated for PN25 pressure class (25 bar nominal pressure). It is used to control and isolate LPG flow in bulk storage tank systems, depots, and high-capacity distribution networks.
In Kenya and Uganda, flanged LPG ball valves PN25 are widely deployed in EPRA-regulated LPG depots, import terminals, and industrial storage facilities where high-pressure integrity is critical.
Related Products
These valves are essential components in bulk fuel handling systems and are typically installed in main transfer lines connecting storage tanks to vaporizer and distribution systems.
They are often integrated with LP gas train equipment systems for controlled gas delivery.
Why PN25 flanged valves are critical in LPG storage systems
Bulk LPG systems operate under high pressure and continuous flow conditions. Any failure in isolation valves can lead to catastrophic leakage or system shutdown.
The flanged LPG ball valve PN25 provides:
- High-pressure sealing up to 25 bar
- Robust bolted flange connection for stability
- Easy maintenance and replacement without pipeline cutting
- Full bore flow for minimal pressure drop
Without a flanged LPG ball valve PN25, bulk LPG infrastructure cannot safely operate under industrial conditions.
2. Commercial & Industrial Applications
A flanged LPG ball valve PN25 is used in bulk LPG storage depots to isolate high-pressure fuel lines between storage tanks and distribution systems. It ensures safe flow control, emergency shutoff capability, and secure maintenance access in industrial gas handling environments.
These systems are widely used in Nairobi, Mombasa, Kampala, and industrial fuel terminals across East Africa.
Industrial manufacturing facilities
Factories using large-scale LPG systems rely on flanged LPG ball valve PN25 units to control fuel supply to boilers, furnaces, and production lines.
LPG bottling and filling plants
Cylinder filling stations use flanged LPG ball valve PN25 systems for safe isolation of bulk storage tanks during transfer operations.
These systems are often paired with control panels and automation systems.
Power generation and thermal plants
Thermal plants using LPG as backup fuel rely on flanged isolation valves for safe switching and emergency shutdown control.
3. Engineering Specifications & Technical Performance
A flanged LPG ball valve PN25 is a quarter-turn industrial valve with bolted flange ends designed to withstand high-pressure LPG flow systems up to 25 bar, ensuring reliable isolation in bulk storage applications.
Technical Specifications Table
| Parameter | Specification | Engineering Notes |
|---|---|---|
| Pressure Rating | PN25 (25 bar) | High-pressure LPG systems |
| Valve Type | Full bore ball valve | Minimal pressure drop |
| Connection | Flanged (ANSI/PN standard) | Industrial pipeline integration |
| Material | Carbon steel / stainless steel | Corrosion-resistant design |
| Seal Type | PTFE / reinforced sealing | Gas-tight performance |
| Temperature Range | -20°C to 80°C | LPG operating conditions |
| Operation | Manual / gear operated | Heavy-duty control |
System Integration Note
Flanged LPG ball valve PN25 systems are commonly integrated with industrial LPG vaporizers and pressure regulation systems for stable bulk gas supply.
4. Comparative Technical Analysis
| Feature | Flanged LPG Ball Valve PN25 | Threaded Valve | Welded Valve |
|---|---|---|---|
| Pressure Capacity | Very High | Medium | High |
| Maintenance Ease | Excellent | Good | Poor |
| Leak Integrity | Very High | Medium | High |
| Installation Flexibility | High | High | Low |
| Bulk Tank Suitability | Excellent | Limited | Moderate |
5. Installation, Testing & Commissioning Best Practices
Installation of a flanged LPG ball valve PN25 requires proper gasket alignment, bolt torque sequencing, and flange face inspection to ensure leak-free sealing. Correct installation guarantees safe high-pressure isolation in bulk LPG systems.
Engineering workflow
- Pipeline isolation and depressurization
- Flange face inspection and cleaning
- Gasket placement and alignment
- Bolt tightening in cross-pattern sequence
- Pressure testing
- Leak detection verification
- Operational flow testing
Commissioning checklist
| Step | Requirement | Acceptance Criteria |
|---|---|---|
| Flange alignment | Proper seating | No misalignment |
| Bolt torque | Specified torque | Uniform tightening |
| Pressure test | System rated pressure | No leakage |
| Operational test | Valve cycling | Smooth operation |
6. Regulatory Compliance, Certification & Safety
Flanged LPG ball valve PN25 systems must comply with:
- EPRA (Energy and Petroleum Regulatory Authority) LPG storage regulations
- KEBS (Kenya Bureau of Standards) pressure equipment certification
- OSHA / DOSHS industrial safety standards
- NFPA 58 LPG storage and handling codes
For engineered LPG system design, explore professional LPG engineering services.
7. Frequently Asked Questions (FAQ)
1: What is a flanged LPG ball valve PN25 used for?
It is used to isolate and control high-pressure LPG flow in bulk storage and industrial systems.
2: Why is PN25 rating important?
It ensures the valve can safely handle up to 25 bar pressure in industrial LPG systems.
3: Where are flanged LPG ball valves used in Kenya?
They are used in depots, bottling plants, industrial facilities, and fuel terminals.
4: What makes flanged valves better than threaded valves?
They offer higher pressure capacity, stronger sealing, and easier maintenance for large systems.
8. Engineering Conclusion
The flanged LPG ball valve PN25 is a critical high-pressure isolation component used in bulk LPG storage and distribution systems across Kenya and East Africa. Its robust flanged design ensures safe operation, easy maintenance, and reliable performance under demanding industrial conditions.
When integrated into engineered systems such as complete LPG gas train assemblies and compliant with EPRA and KEBS standards, the flanged LPG ball valve PN25 significantly enhances safety, operational efficiency, and system reliability.
Megtraco Kenya Ltd continues to supply advanced LPG valve solutions engineered for high-pressure industrial applications.
